Aluminum Composite Panels: Revolutionizing Modern Architecture
Aluminum Composite Panels (ACPs), also known as Aluminum Composite Materials (ACMs), are sandwich-structured flat panels comprising two thin coil-coated ​aluminum sheets bonded to a ​non-aluminum core (typically polyethylene (PE) or mineral-filled fire-retardant material). First developed in Germany in the 1960s and popularized globally by the 1990s, ACPs have become indispensable in contemporary construction, advertising, and industrial design due to their ​exceptional versatility, cost-efficiency, and performance.

​1. Composition and Manufacturing

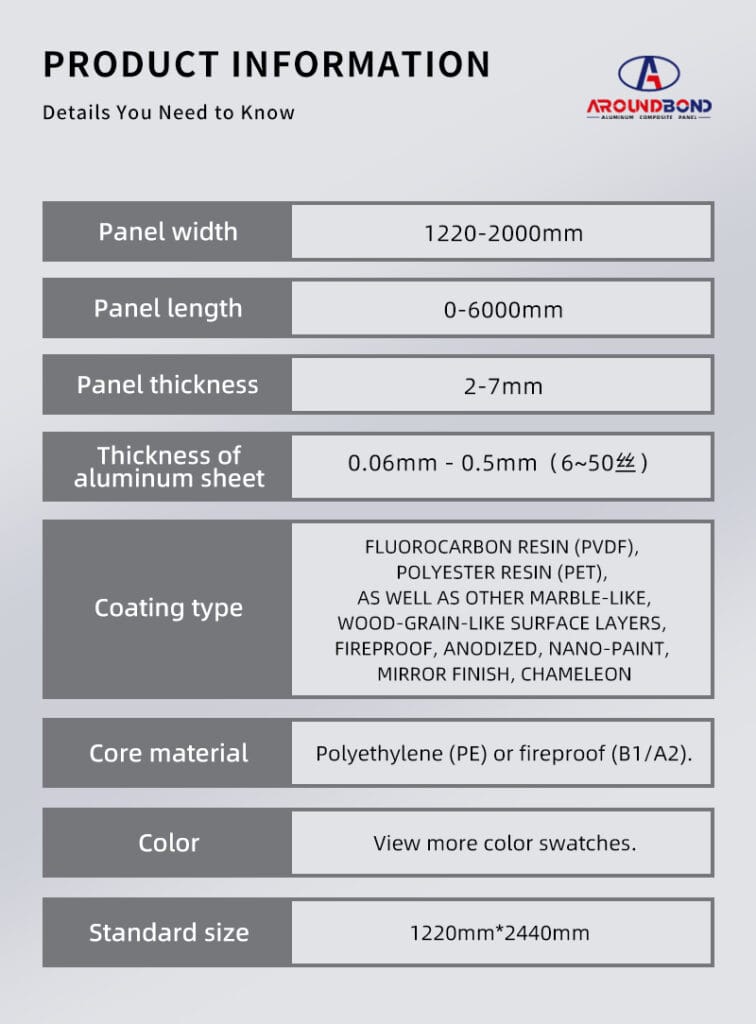

The core structure features three layers:

​Surface Layers: High-purity aluminum sheets (0.1–0.5 mm thick), coated with protective finishes like ​PVDF (polyvinylidene fluoride) for outdoor use or polyester for interiors.
​Core Layer: Non-toxic, low-density PE (3–6 mm thick) or fire-resistant mineral cores (e.g., A2-grade).
​Protective Film: Removable layer for transport and installation safeguarding.
Production Process:
​Material Preparation: Aluminum coils are uncoiled and cleaned.
​Coating Application: PVDF/polyester coatings are applied via continuous coil coating.
​Lamination: Core material is extruded and bonded to aluminum sheets under heat and pressure.
​Finishing: Panels are trimmed, cut to size (up to 6m length), and surface-treated (embossing, printing).

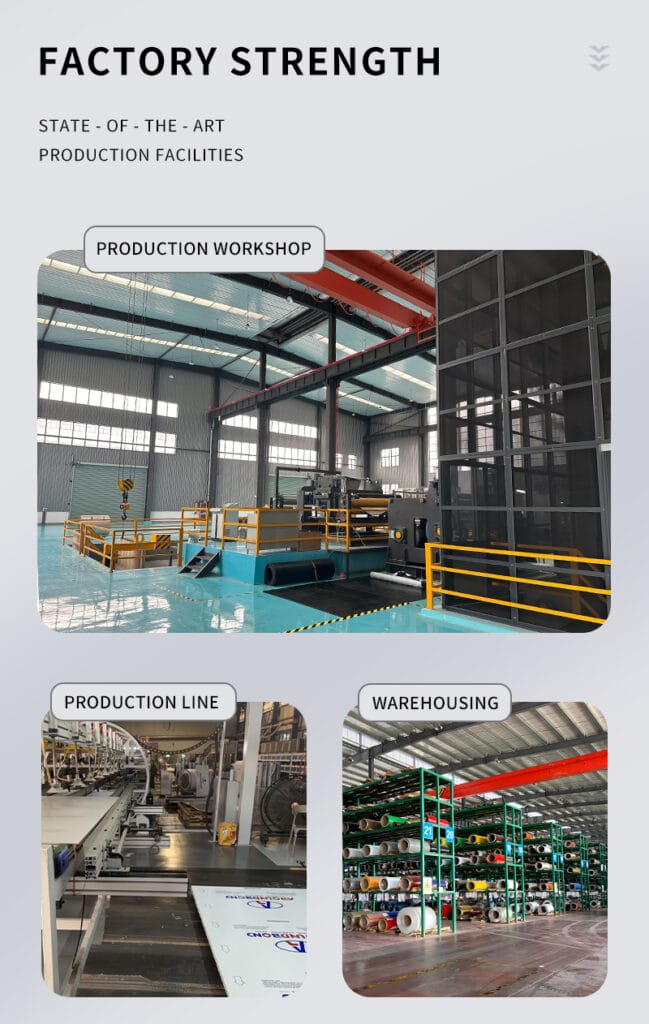

Automated production lines ensure uniform thickness (3–6mm) and peel strength, with strict adherence to ISO, GB/T 17748-2008 (China), and EN 13501-1 fire standards.
​2. Key Properties and Advantages
Property Technical Benefits Applications Impact
​Lightweight 3.5–5.5 kg/m² density Reduces structural load; enables high-rise cladding without reinforcement.
​Weather Resistance PVDF coatings withstand UV, corrosion, and -40°C to 80°C cycles Maintains color stability for 20+ years; ideal for facades in extreme climates.
​Fire Safety Fire-retardant cores (B1/A2-grade) limit flame spread Mandatory for airports, hospitals, and high-security buildings.
​Machinability Cut, bent, or drilled with woodworking tools; cold-formed into curves Supports complex architectural geometries (e.g., undulating facades, columns).
​Acoustic/Thermal Insulation PE core reduces noise transmission (25dB+) and thermal bridging Lowers HVAC energy consumption; used in tunnels and soundproof offices.

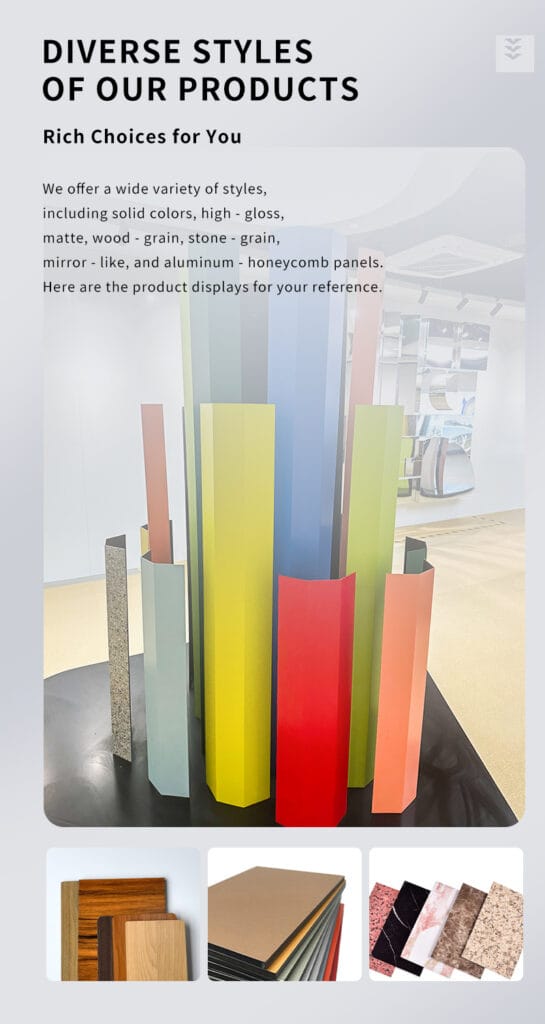

​Aesthetic Flexibility Customizable via digital printing, metallic/wood finishes, or 3D textures Enables brand-specific signage and artistic installations.
​3. Classification by Application

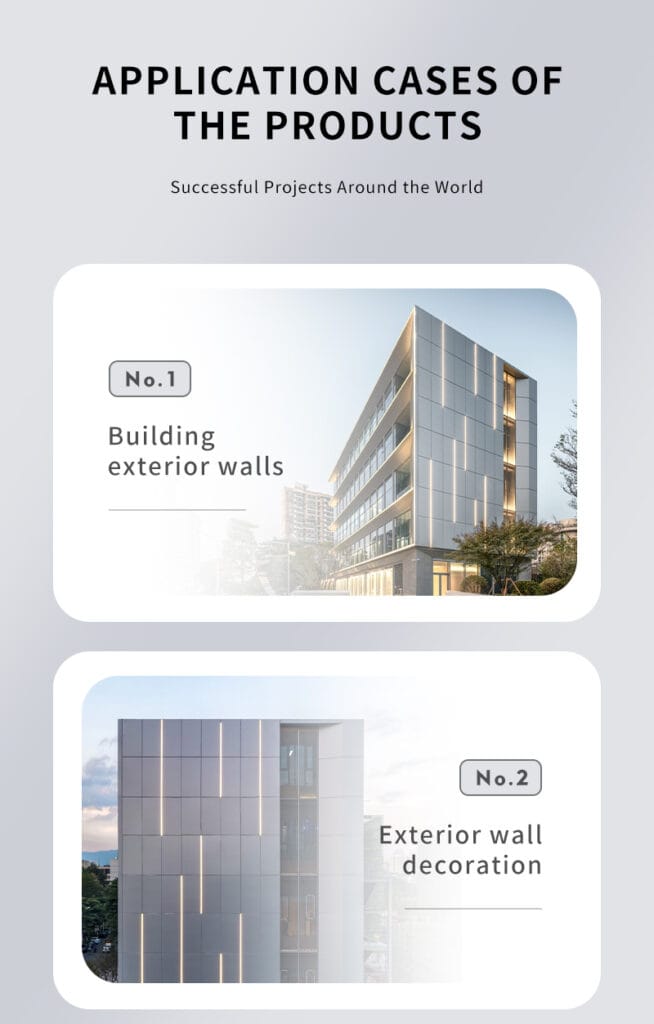

a) Architectural Cladding

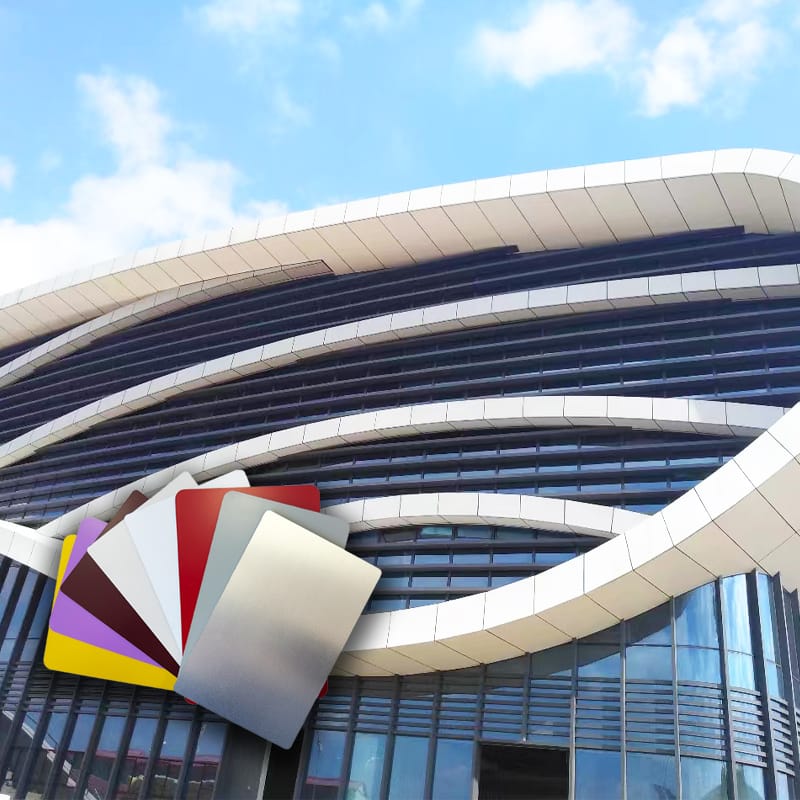

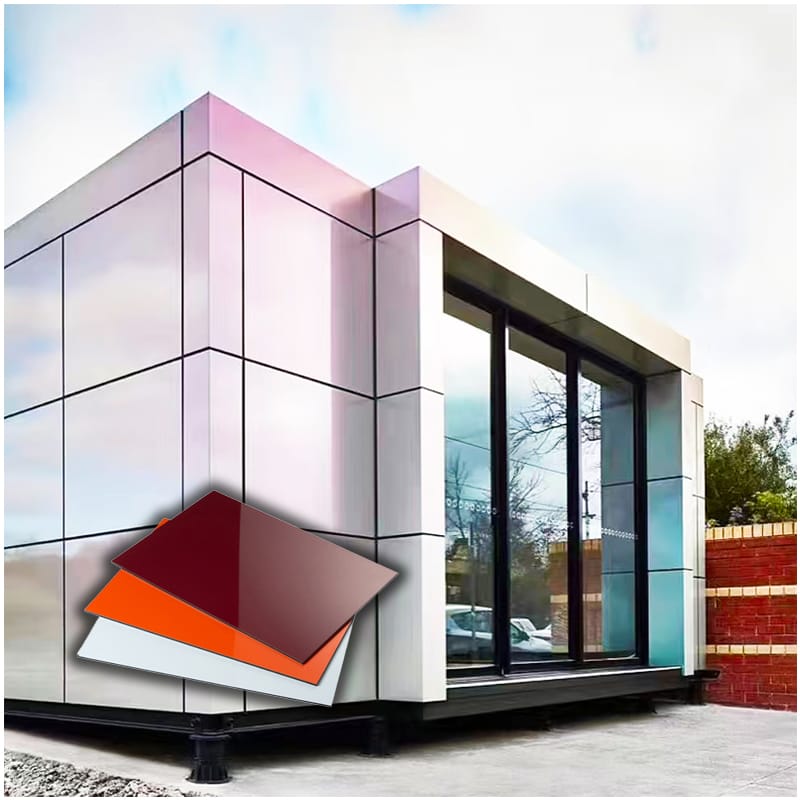

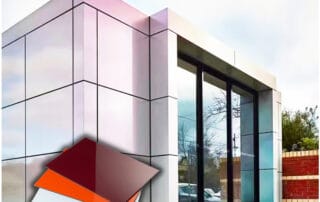

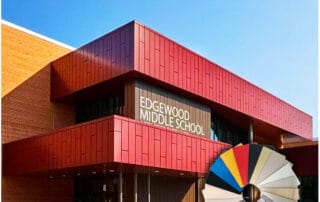

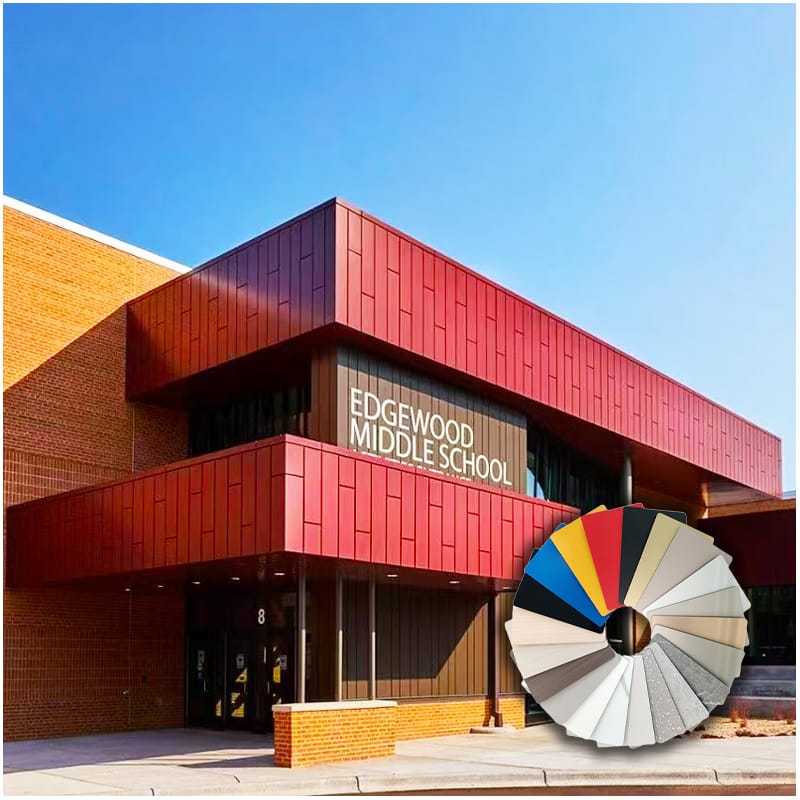

​Exterior Walls: 4mm thickness, 0.5mm aluminum, PVDF coating (e.g., skyscrapers, retrofits).

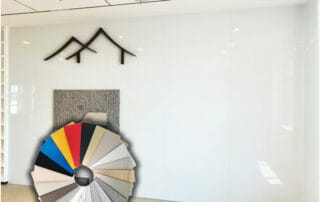

​Interior Partitions: 3mm thickness, 0.2mm aluminum, polyester coating (ceilings, kitchens).
b) Specialized Panels

​Fire-Rated (A2/B1): Mineral cores for high-rises and public infrastructure.
​Antibacterial: PE cores with antimicrobial coatings for hospitals/labs.
​Industrial: Impact-resistant panels for vehicle bodies (buses, trains) and cold storage.
c) Advertising & Design

Digital-printed billboards, exhibition stands, and retail displays.

4. Challenges and Future Outlook
​Regulatory Hurdles: Stricter fire codes (e.g., post-Grenfell reforms) demand mineral cores over PE.
​Material Innovation: Self-cleaning nano-coatings and lightweight cores (≤2.5 kg/m²) in R&D.
​Market Expansion: Rising demand in emerging economies for affordable, rapid-construction solutions.
​Conclusion
ACPs exemplify material science’s role in sustainable architecture. Their fusion of ​durability, adaptability, and eco-efficiency positions them as a cornerstone of modern design—from transforming urban skylines to enabling energy-neutral buildings. As technologies advance, ACPs will continue to redefine construction paradigms, balancing aesthetic freedom with planetary responsibility.
